OB1 Main : Main Program Sweep |
|
|
|
|
|
Network 1: Start measuring runtime (Start Cycle) "HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout); |
|
|
|
|
|
Network 2: Pulse generator "HMI SYS".Support.Sav_Clock_Byte := "HMI SYS".Support.Sav_Clock_Byte XOR "M01 Clock_Byte"; "M00 PLC Impulse" := "HMI SYS".Support.Sav_Clock_Byte AND "Clock_Byte"; "HMI SYS".Support.Sav_Clock_Byte := "M01 Clock_Byte"; |
|
|
|
|
|
Network 3: CALL distributor "DI MAIN GLB"(); // Global Operation Mode
"DI MAIN P01"(); "DI MAIN P02"(); "DI MAIN P03"(); "DI MAIN P04"();

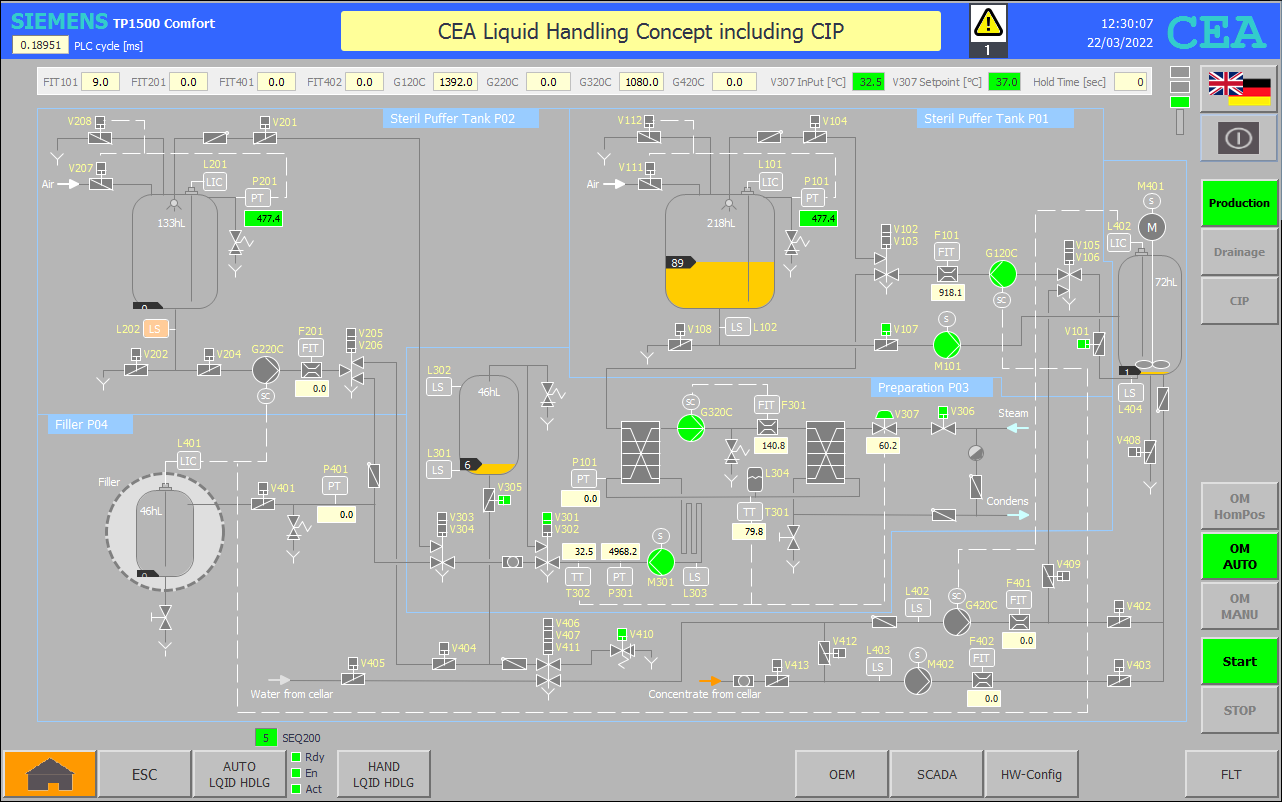

"DI OUT P01"(); // Sterile Buffer Tank 1 "DI OUT P02"(); // Sterile Buffer Tank 2 |
|
|
|
|
|
Network 4: First cycle evaluation "HMI SYS".Support.FirstCycle_TON(IN := TRUE,PT := t#2s); "M00 OB1 FirstCycle" := "HMI SYS".Support.FirstCycle_TON.Q; |
|
|
|
|
|
Network 5: Flag logic =0 "M00 log 0" := FALSE; "M00 log 1" := TRUE; |
|
|
|
|
|
Network 6: End measuring runtime (End Cycle) "HMI SYS".Support.LastCycle_real := LREAL_TO_REAL(IN := RUNTIME("HMI SYS".Support.LastCycle_inout)); |
|
