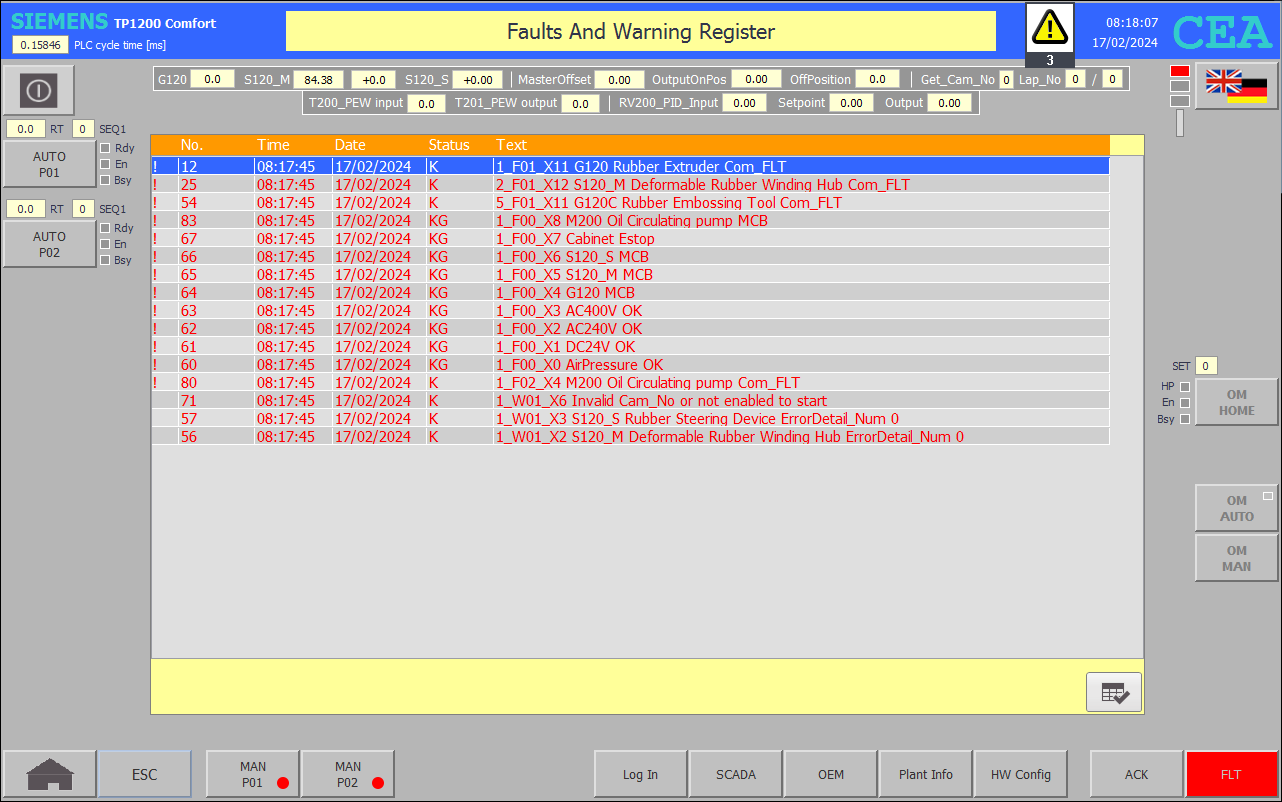

FB27 FLT GLB : Faults and warning |
|
|
|
|
|
Netzwerk 1: Extern acknowledgment, if necessary // not necessary |
|
|
|
|
|
Netzwerk 2: 1_F00_X0 Air Pressure OK #"1_FAULT_00_15".%X0 := NOT "E00 AirPressure OK"; |
|
|
|
|
|
Netzwerk 3: 1_F00_X1 DC24V OK #"1_FAULT_00_15".%X1 := NOT "E00 DC24V OK"; |
|
|
|
|
|
Netzwerk 4: 1_F00_X2 AC240V OK #"1_FAULT_00_15".%X2 := NOT "E00 AC240V OK"; |
|
|
|
|
|
Netzwerk 5: 1_F00_X3 AC400V OK #"1_FAULT_00_15".%X3 := NOT "E00 AC400V OK"; |
|
|
|
|
|
Netzwerk 6: 1_F00_X4 G120 MCB #"1_FAULT_00_15".%X4 := NOT "E00 G120 MCB"; |
|
|
|
|
|
Netzwerk 7: 1_F00_X5 S120_M MCB #"1_FAULT_00_15".%X5 := NOT "E00 S120_M MCB"; |
|
|
|
|
|
Netzwerk 8: 1_F00_X6 S120_S MCB #"1_FAULT_00_15".%X6 := NOT "E00 S120_S MCB"; |
|
|
|
|
|
Netzwerk 9: 1_F00_X7 Cabinet Estop #"1_FAULT_00_15".%X7 := NOT "E00 Estop OK"; |
|
|
|
|
|
Netzwerk 10: 1_F00_X8 M200 Oil Circulating pump MCB #"1_FAULT_00_15".%X8 := NOT "E00 M200 MCB"; |
|
|
|
|
|
Netzwerk 11: 1_W00_X0 Production slowdown dancer at top #"1_WARN_00_15".%X0 := NOT "E00 CAM DancUp" AND "DI MAIN P01".M00.RdyToStart AND "DI OUT P01".G120C.DRV.Support.LampON; |
|
|
|
|
|
Netzwerk 12: 1_W00_X1 Production speed up dancer at bottom #"1_WARN_00_15".%X1 := NOT "E00 CAM DancDn" AND "DI MAIN P01".M00.RdyToStart AND "DI OUT P01".G120C.DRV.Support.LampON; |
|
|
|
|
|
Netzwerk 13: Record global fault message "ModuleData".P00.STS."1_ModuleFLT_00_31" := dw#16#ffffffff AND (SHL_WORD(IN := #"1_FAULT_00_15", N := 16) OR #"2_FAULT_00_15"); #FLT_MODULE := 0 <> "ModuleData".P01.STS."1_ModuleFLT_00_31"; |
|
