FB20 MAIN GLB : Global Operation Mode |
|
|
|
|
|
Network 1: Fault acknowledgement entire plant #M00.FLT_EntirePlant_ACK_Impulse := NOT #M00.FLT_EntirePlant_ACK_REg AND "HMI KEY".P00.GLB.F1_AckKey; #M00.FLT_EntirePlant_ACK_REg := "HMI KEY".P00.GLB.F1_AckKey; |
|
|
|
|
|
Network 2: Assign global emergency stop #M00.GLB_Estop := "A00 Estop 1L+" AND "A00 Estop 2L+"; |
|
|
|
|
|
Network 3: S200A3 Pick & Place Delta Robot - enable #FLT(FLT_MODULE := #M00.FLT_Internal_IS); |
|
|
|
|
|
Network 4: Evaluate failure entire plant #M00.FLT_EntirePlant_IS := #M00.FLT_Internal_IS OR "DI MAIN P01".M00.FLT_Module_IS; IF #M00.FLT_EntirePlant_IS THEN #M00.FLT_EntirePlant_SR := TRUE; END_IF; IF #M00.FLT_EntirePlant_SR AND NOT #M00.FLT_EntirePlant_ACK THEN IF #M00.FLT_EntirePlant_ACK_Impulse THEN #M00.FLT_EntirePlant_ACK := TRUE; END_IF; ELSIF NOT #M00.FLT_EntirePlant_IS AND #M00.FLT_EntirePlant_ACK THEN #M00.FLT_EntirePlant_SR := #M00.FLT_EntirePlant_ACK := FALSE; END_IF; |
|
|
|
|
|
Network 5: Signal light column (modular signal tower) entire plant #M00.SLC_Lamp_RD := #M00.FLT_EntirePlant_SR AND NOT #M00.FLT_EntirePlant_ACK AND "M00_Clock_1Hz" OR #M00.FLT_EntirePlant_SR AND #M00.FLT_EntirePlant_ACK; #M00.SLC_Lamp_GN := NOT (#M00.FLT_EntirePlant_SR OR #M00.ManuEntirePlant_run) AND (#M00.AutoEntirePlant_run OR #M00.InchEntirePlant_run AND "M00_Clock_1Hz"); #M00.SLC_Lamp_YE := #M00.ManuEntirePlant_run; |
|
|
|
|
|
Network 6: Query plant at home position #M00.HomePos_All := "DI MAIN P01".M00.HomePos_IS; IF #M00.HomePos_All THEN #M00.HomePos_SR := TRUE; END_IF; |
|
|
|
|
|
Network 7: Operation mode AUTOMATIC IF "HMI KEY".P00.GLB.F3_OM_AUTO_ON AND #M00.HomePos_SR THEN #M00.OM_AUTO_ON := TRUE; #M00.OM_MANUAL_ON := #M00.OM_HOME_POS_ON := #M00.OM_INCHING_ON := #M00.ManuEntirePlant_run := #M00.InchEntirePlant_run := FALSE; ELSIF #M00.OM_AUTO_ON AND "HMI KEY".P00.GLB.F5_Start THEN #M00.AutoEntirePlant_run := TRUE; END_IF; |
|
|
|
|
|
Network 8: Operation mode INCHING IF "HMI KEY".P00.GLB.F15_OM_INCHING_ON AND #M00.HomePos_SR THEN #M00.OM_INCHING_ON := TRUE; #M00.OM_MANUAL_ON := #M00.OM_HOME_POS_ON := #M00.OM_AUTO_ON := #M00.ManuEntirePlant_run := #M00.AutoEntirePlant_run := FALSE; ELSIF #M00.OM_INCHING_ON AND "HMI KEY".P00.GLB.F5_Start THEN #M00.InchEntirePlant_run := TRUE; IF #M00.EntirePlant_Run_Impulse THEN // Inching mode if need be "HMI SYS".TP1500_Comfort.AreaPoint.ControlRequest.Parameter_JobNumber := 51; // activate screen number (job number) "HMI SYS".TP1500_Comfort.AreaPoint.ControlRequest.Parameter_ScreenNumber := 201; // 201_AUTO_P01 screen number END_IF; END_IF; |
|
|
|
|
|
Network 9: Operation mode MANUAL IF "HMI KEY".P00.GLB.F4_OM_MANU_ON AND NOT #SET.SSM.S.steps THEN #M00.OM_MANUAL_ON := TRUE; #M00.OM_HOME_POS_ON := #M00.OM_AUTO_ON := #M00.OM_INCHING_ON := #M00.AutoEntirePlant_run := #M00.InchEntirePlant_run := FALSE; ELSIF #M00.OM_MANUAL_ON AND "HMI KEY".P00.GLB.F5_Start THEN #M00.ManuEntirePlant_run := TRUE; END_IF; |
|
|
|
|
|
Network 10: Operation mode HOME POS entire plant #M00.Enabled := #M00.OM_HOME_POS_ON AND NOT #M00.FLT_EntirePlant_SR; IF "HMI KEY".P00.GLB.F7_OM_HOM_POS_ON THEN #M00.OM_HOME_POS_ON := TRUE; #M00.OM_AUTO_ON := #M00.OM_MANUAL_ON := #M00.OM_INCHING_ON := #M00.AutoEntirePlant_run := #M00.ManuEntirePlant_run := #M00.InchEntirePlant_run := FALSE; ELSIF #M00.Enabled AND NOT #M00.FLT_EntirePlant_SR AND "HMI KEY".P00.GLB.F5_Start THEN #SET.SSM.S.steps := TRUE; #M00.HomePos_SR := FALSE; END_IF; IF NOT #M00.OM_HOME_POS_ON OR "HMI KEY".P00.GLB.F8_Stop THEN #SET.SSM.S.steps := FALSE; END_IF; #M00.Busy := #SET.SSM.S.steps; #SET.SSM.S.steph := #M00.FLT_EntirePlant_SR; #SET(); |
|
|
|
|
|
Network 11: STOP all operation mode #tmp_llo := (#M00.AutoEntirePlant_run OR #M00.ManuEntirePlant_run OR #M00.InchEntirePlant_run) AND "HMI KEY".P00.GLB.F8_Stop; IF #tmp_llo OR #M00.FLT_EntirePlant_SR THEN #M00.AutoEntirePlant_run := #M00.InchEntirePlant_run := FALSE; END_IF; IF #tmp_llo THEN #M00.ManuEntirePlant_run := FALSE; END_IF; |
|
|
|
|
|
Network 12: Create STOP impuls entire plant #tmp_llo := #M00.ManuEntirePlant_run OR #M00.AutoEntirePlant_run OR #M00.InchEntirePlant_run OR #SET.SSM.S.steps; #M00.EntirePlant_STOP_Impulse := NOT #tmp_llo AND #M00.EntirePlant_STOP_FEg; #M00.EntirePlant_STOP_FEg := #tmp_llo; #M00.TOF_EntirePlant_STOP_Pulse(IN := #M00.EntirePlant_STOP_Impulse, PT := t#500ms); |
|
|
|
|
|
Network 13: Create impulse-running entire plant #tmp_llo := #M00.AutoEntirePlant_run OR #M00.ManuEntirePlant_run OR #SET.SSM.S.steps OR #M00.InchEntirePlant_run; #M00.EntirePlant_Run_Impulse := NOT #M00.EntirePlant_Run_REg AND #tmp_llo; #M00.EntirePlant_Run_REg := #tmp_llo; |
|
|
|
|
|
Network 14: Show key colour on HMI "HMI KEY".P00.GLB.F11_Show_KeyColour_Start_Stop := #M00.AutoEntirePlant_run OR #M00.ManuEntirePlant_run OR #M00.InchEntirePlant_run OR #SET.SSM.S.steps; "HMI KEY".P00.GLB.F14_Show_Key_Start_Stop := #M00.OM_AUTO_ON OR #M00.OM_MANUAL_ON OR #M00.OM_HOME_POS_ON OR #M00.OM_INCHING_ON; |
|
|
|
|
|

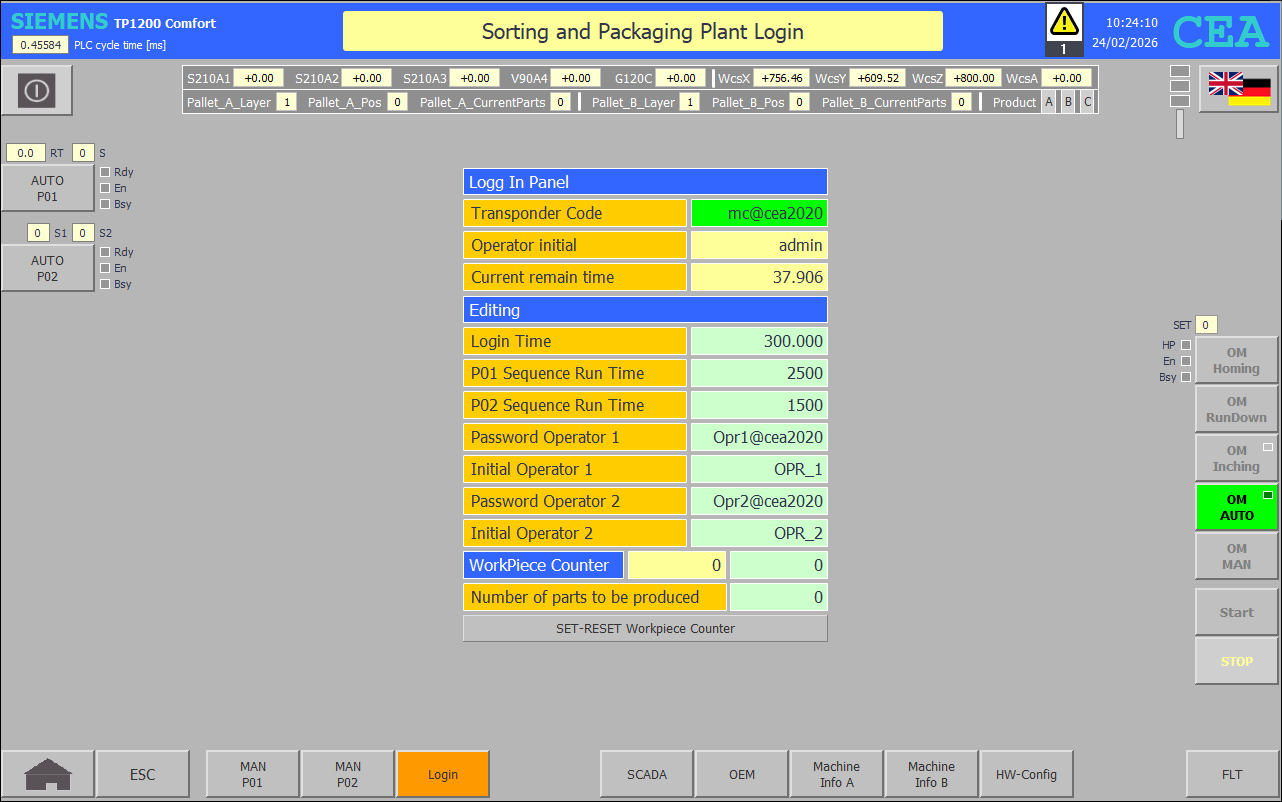

Network 15: LogIn mc@cea2020 IF "HMI SYS".Login.Operator_0.ID = "HMI SYS".Login.Admin.ID THEN "HMI SYS".Login.Operator_0.Initials := "HMI SYS".Login.Admin.Initials; #M00.LogInID_CEA := #M00.LogInID_OK := TRUE; ELSIF "HMI SYS".Login.Operator_0.ID = "HMI SYS".Login.Operator_1.ID THEN "HMI SYS".Login.Operator_0.Initials := "HMI SYS".Login.Operator_1.Initials; #M00.LogInID_OK := TRUE; #M00.LogInID_CEA := FALSE; ELSIF "HMI SYS".Login.Operator_0.ID = "HMI SYS".Login.Operator_2.ID THEN "HMI SYS".Login.Operator_0.Initials := "HMI SYS".Login.Operator_2.Initials; #M00.LogInID_OK := TRUE; #M00.LogInID_CEA := FALSE; ELSE #M00.LogInID_CEA := #M00.LogInID_OK := FALSE; END_IF; IF NOT #M00.LogInID_OK THEN "HMI SYS".Login.Operator_0.Initials := ''; END_IF; #M00.TON_Login(IN := #M00.LogInID_CEA, PT := #M00.TON_Login.PT); IF #M00.TON_Login.Q THEN "HMI SYS".Login.Operator_0.ID := ''; END_IF; |
|
