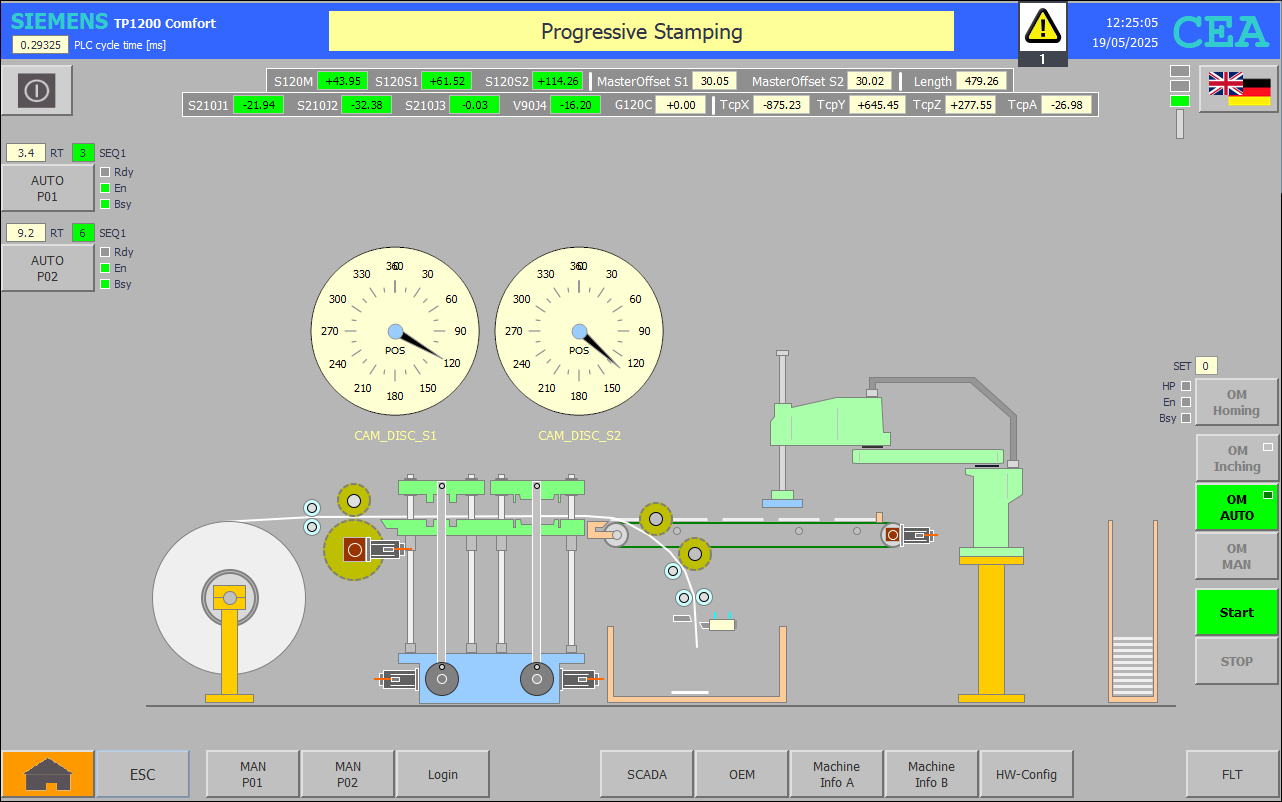

OB1 Main : Main Programme Sweep (cycle) |
|
|
|
|
|
Network 1: Start measuring runtime (Last Cycle) "HMI SYS".Support.LastCycle := RUNTIME("HMI SYS".Support.LastCycle_inout); |
|
|
|
|
|
Network 2: Pulse generator "HMI SYS".Support.Sav_Clock_Byte := "HMI SYS".Support.Sav_Clock_Byte XOR "M00_Clock_Byte"; "M00_Imp_Byte" := "HMI SYS".Support.Sav_Clock_Byte AND "M00_Clock_Byte"; "HMI SYS".Support.Sav_Clock_Byte := "M00_Clock_Byte"; |
|
|
|
|
|
Network 3: CALL distributor "DI MAIN GLB"(); // Operation mode global plant "DI MAIN P01"(); // Main programme management process module 1 "DI MAIN P02"(); // Main programme management process module 2 // ——- "DI OUT P01"(); // Assign output stage process module 1 "DI OUT P02"(); // Assign output stage process module 2 |
|
|
|
|
|
Network 4: Create delayed first cycle flag "HMI SYS".Support.FirstCycle_TON(IN := TRUE,PT := t#2s); "M00_OB1_FirstCycle" := "HMI SYS".Support.FirstCycle_TON.Q; |
|
|
|
|
|
Network 5: End measuring runtime (Last Cycle) "HMI SYS".Support.LastCycle_real := LREAL_TO_REAL(IN := RUNTIME("HMI SYS".Support.LastCycle_inout)); |
|
